Description

SPECIFICATIONS

Brand: HS Airforce

Dimension: 288*247*36mm

ESC: ESC 55FA 4IN1

Flight Control: FC405A ICM42688

Motor: MT2807A-1300KV

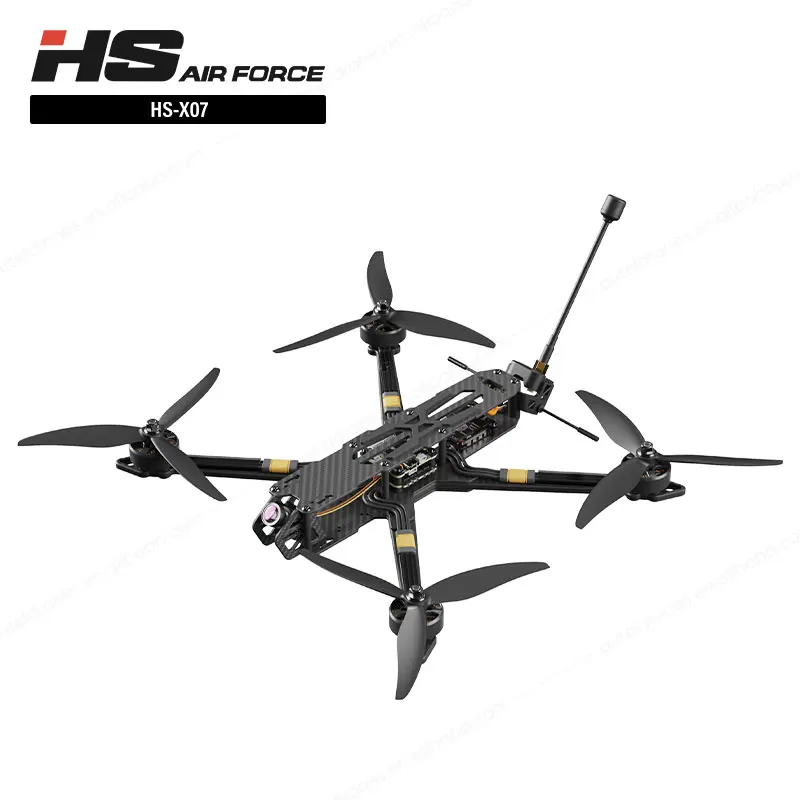

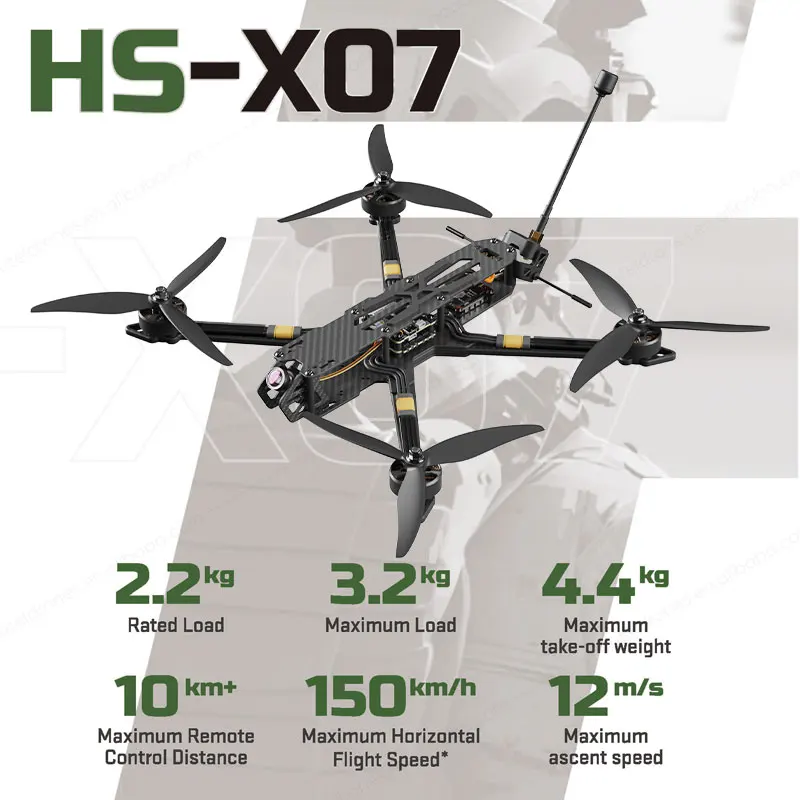

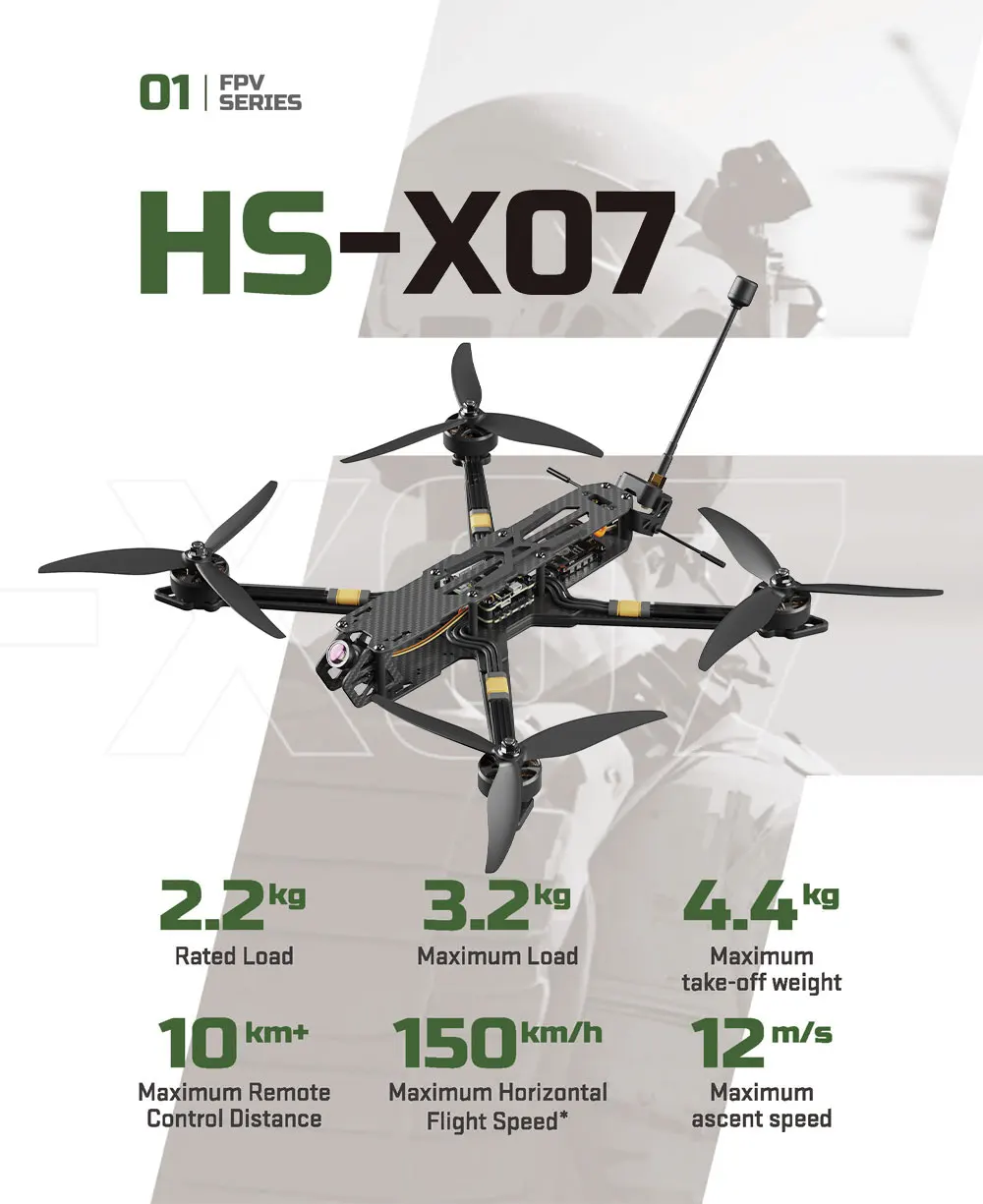

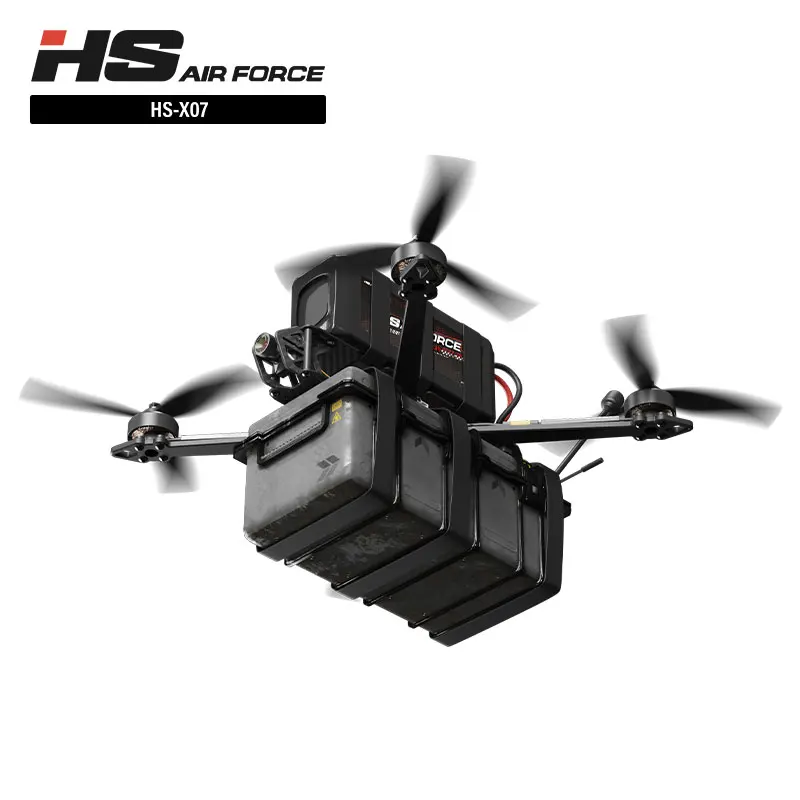

Product name: HS Airforce HS-X07

control type: Remote Control

drone type: Quadcopter

function: With Camera

gyro: YES

image transmission distance: 10 km

material: Carbon Fiber

maximum flight time: NONE

operator skill level: Expert

place of origin: Guangdong, China

private mold: Yes

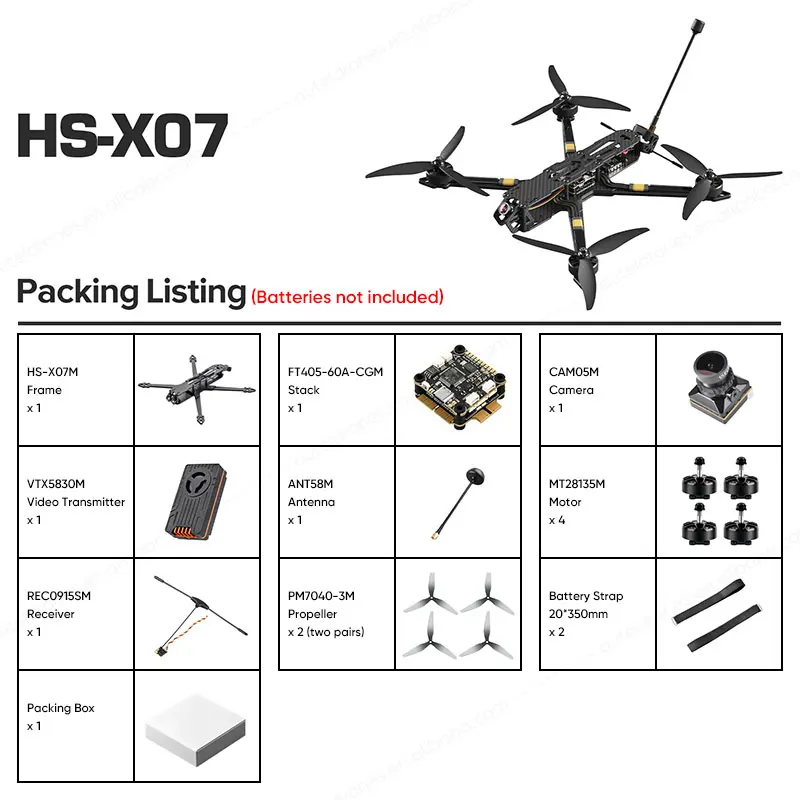

Products Description

Brand	HS Airforce
Model	HS-X07

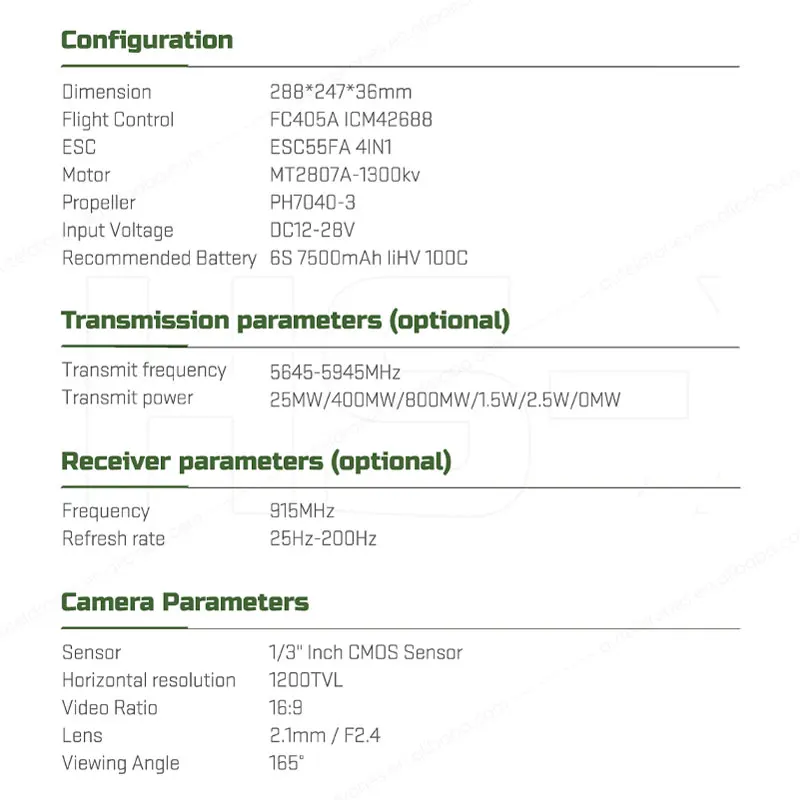

Configuration
Dimension	288*247*36mm

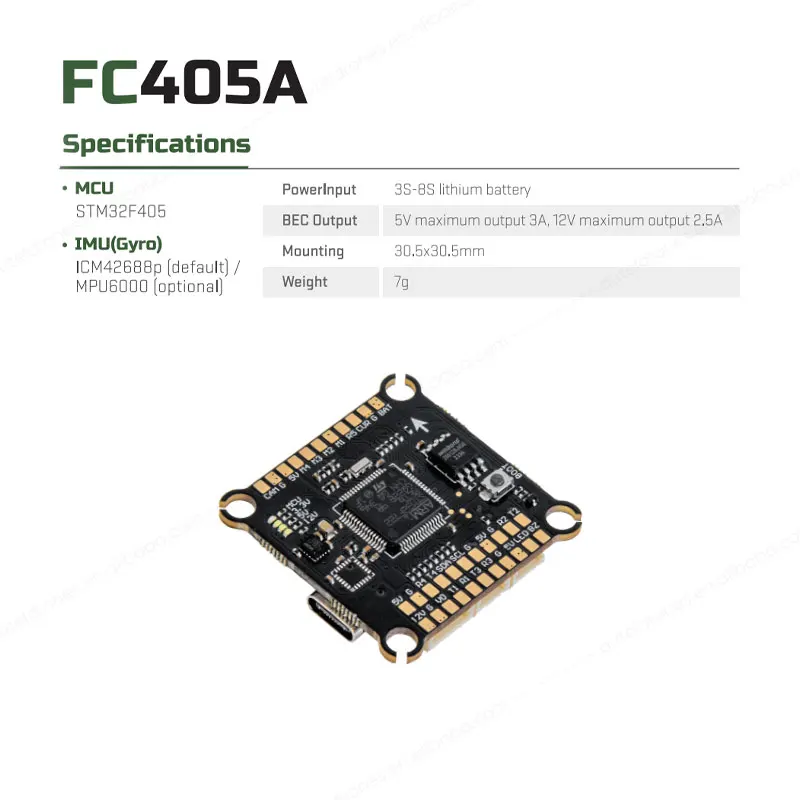

Flight Control	FC405A ICM42688

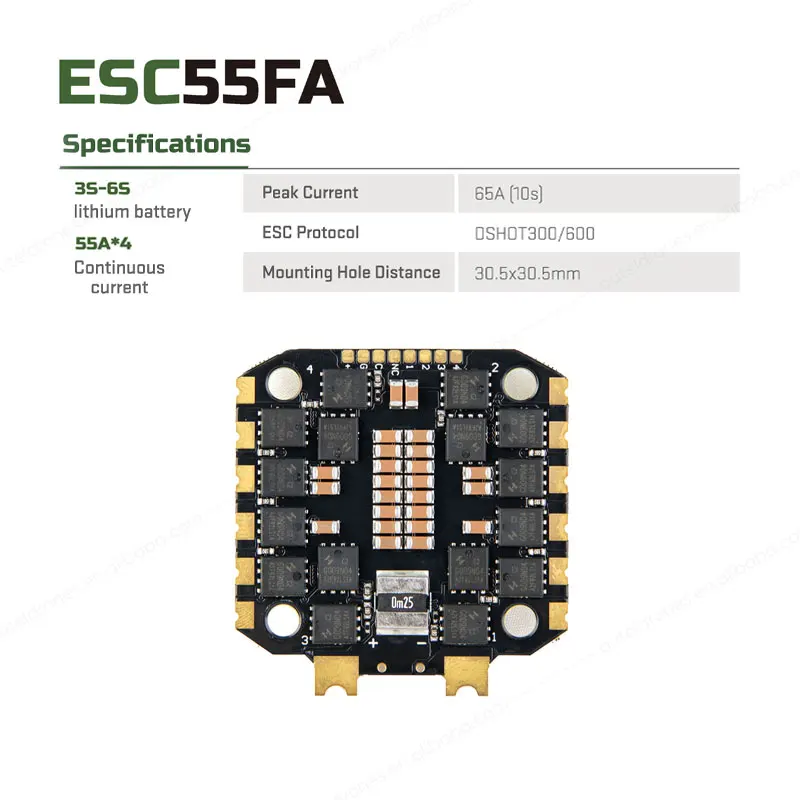

ESC	ESC 55FA 4IN1
Motor	MT2807A-1300KV
Propeller	PH7040-3
Input Voltage	DC 12-28V
Recommended Battery	6S 7500mAh liHV 100C
Transmission parameters (optional)
Transmit frequency	5645-5945MHz
Transmit power	25MW/400MW/800MW/1.5W/2.5W/0MW
Receiver parameters (optional)
Frequency	915MHz
Refresh rate	25Hz-200Hz
Camera Parameters
Sensor	1/3″Inch CMOS Sensor
Horizontal resolution	1200TVL
Video Ratio	16:09
LenS	2.1mm/ F2.4
Viewing Angle	165°

For more product parameters and preferential information, Welcome to Send Inquiry.

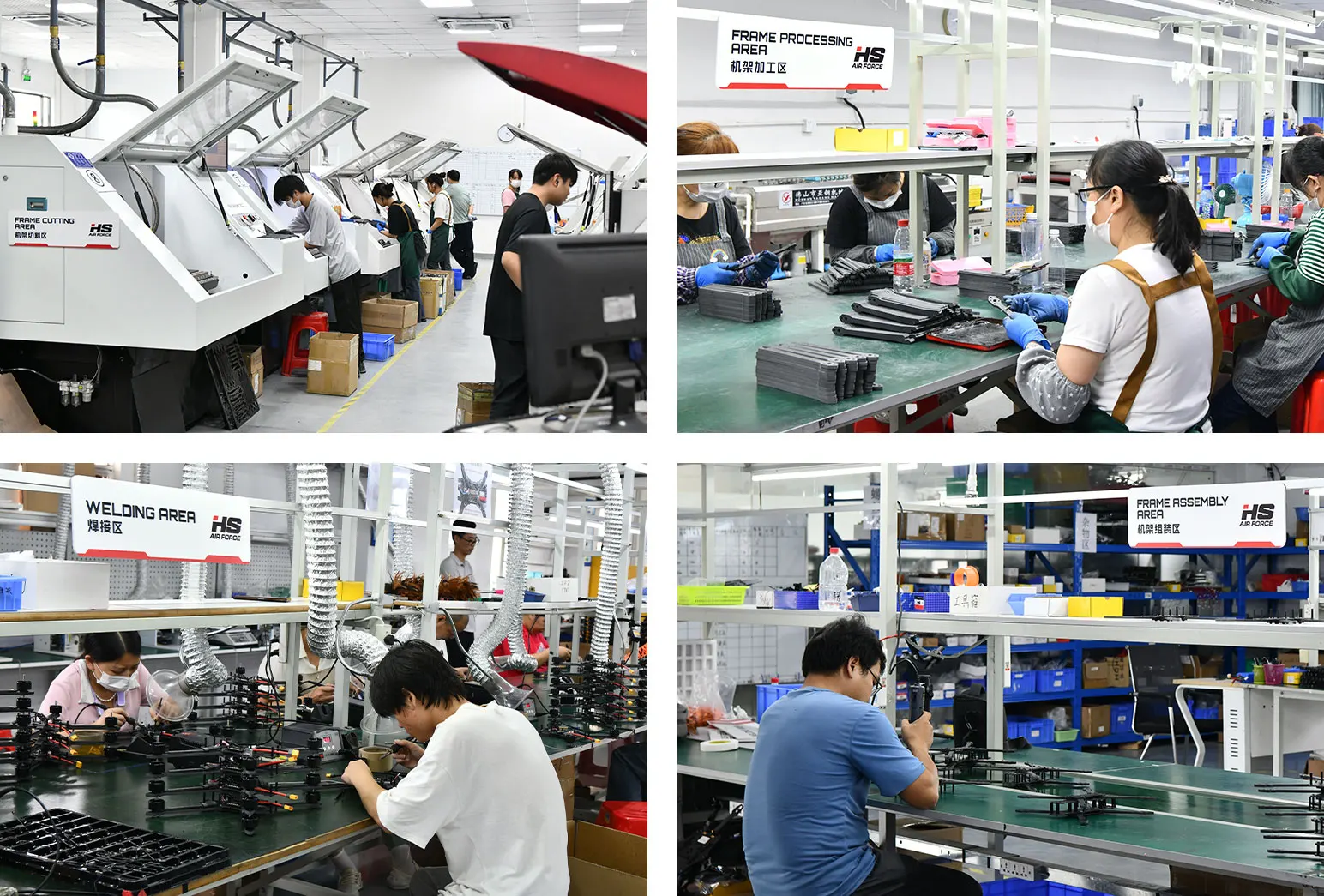

About HS Airforce
